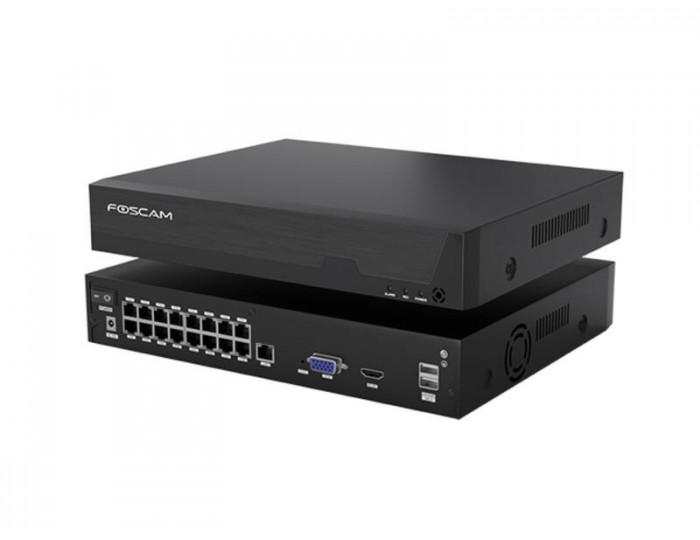

Foscam 16CH 4K PoE NVR 8MP CCTV Recorder 16-Port FNA216HE
Product Code: Foscam-NVR-FNA216HE
Availability: Out Of Stock
Qty:
Availability: Out Of Stock
Qty:
---FOSCAM Authorised Reseller---
2 Yr NZ Warranty
Model: FNA216HE (PoE Version)
16 CHANNEL 4K / 8MP POE NVR – The Foscam FNA216HE supports up to **16 IP cameras** with recording resolution up to **8MP (4K)**, making it suitable for home, office, warehouse and retail security systems.

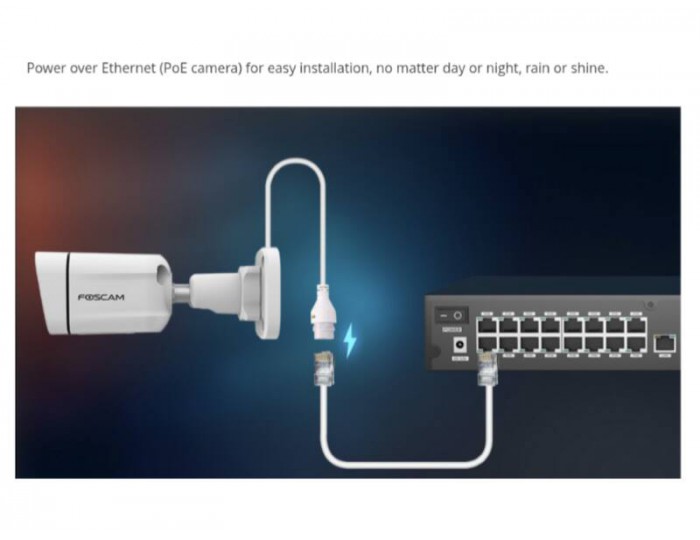

BUILT-IN POE PORTS – With **16 integrated PoE ports**, cameras can connect directly to the NVR using a single Ethernet cable for both power and data, simplifying installation and reducing cabling.
ULTRA HD 8MP RECORDING – Supports **up to 8MP per channel (16ch@8MP)** delivering clear and detailed surveillance footage for reliable monitoring.
16 CHANNEL LIVE VIEW – Monitor all connected cameras simultaneously with multi-channel live preview.
16 CHANNEL PLAYBACK – Review recordings from multiple cameras at the same time to quickly locate important events.
H.264 / H.264+ COMPRESSION – Efficient video compression reduces storage usage and network bandwidth while maintaining high image quality.

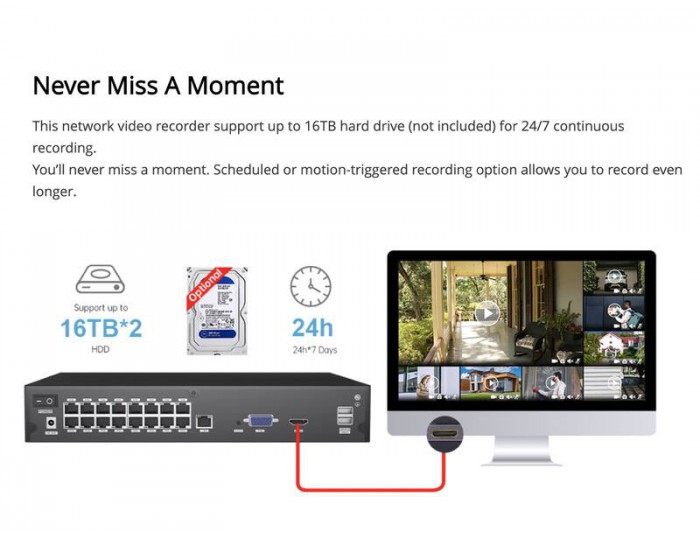

LARGE STORAGE CAPACITY – Supports **two hard drives up to 16TB each (32TB total)** for long-term recording. Hard drives not included.

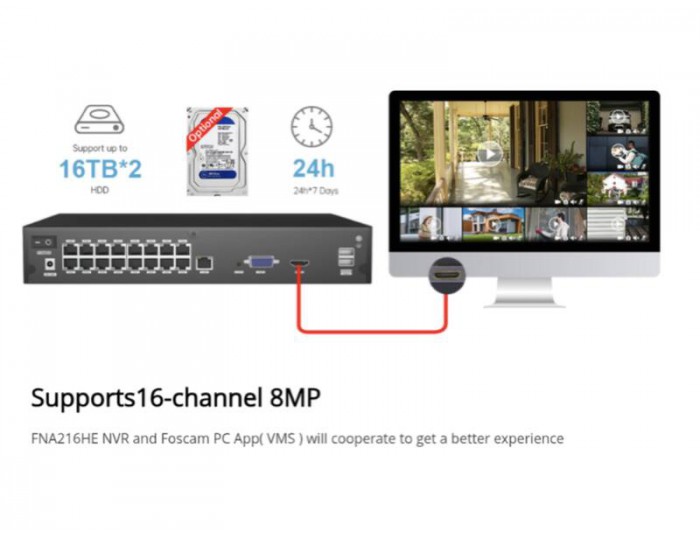

HDMI & VGA OUTPUT – Connect the NVR to a monitor or TV for local viewing and system control.
REMOTE ACCESS – View live video and playback remotely using the **Free Foscam App for iOS, Android, or Desktop VMS software for Windows & Mac OS.**
Specifications
• Video input: 16-channel IP camera input
• Recording resolution: Up to 8MP per channel
• Video compression: H.264 / H.264+
• Video output: 1× HDMI, 1× VGA
• Display resolution: Up to 3840×2160 (4K)
• Playback: 16-channel synchronous playback
• PoE ports: 16× PoE (IEEE 802.3af/at)
• Network: 1× Gigabit RJ45 port
• USB: 2× USB2.0 ports
• Storage: Up to 2 HDD (16TB each)
• Recording mode: Scheduled / Motion detection
• Power supply: DC 52V / 4A

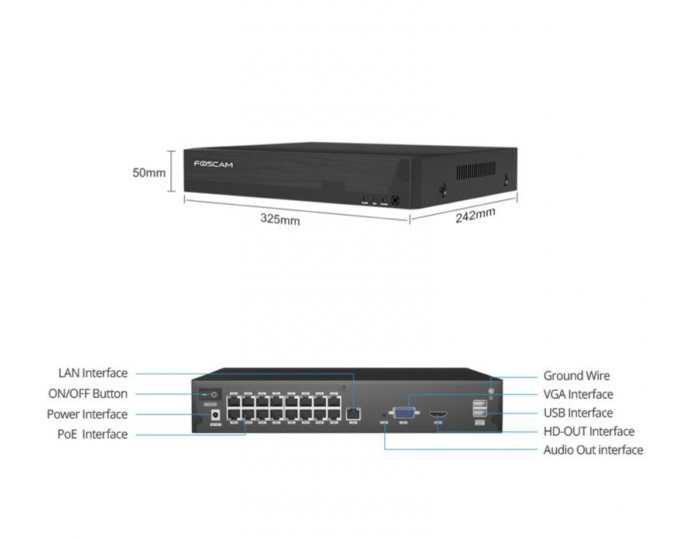

Dimensions: 325 × 242 × 50 mm
Box Contents
1× FNA216HE NVR
1× Power Adapter
1× Mouse
1× Quick Start Guide
Full details:
https://foscam.com/FNA216HE.html
